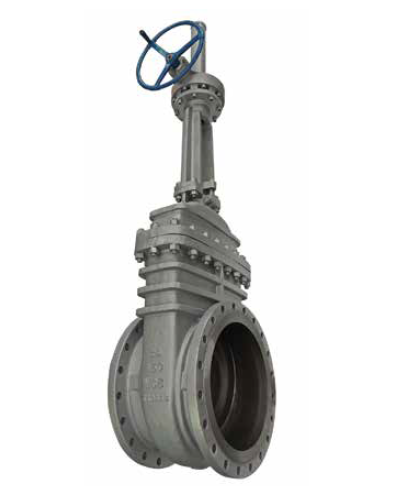

Cast Steel Gate Valve

This valve is used in many plants: petroleum, chemical, interception and distribution of water, steam, oil, fuel. The metal seat allows a very wide utilization field with only few limitations of its use.

Product details

Construction:
Bolted Bonnet, Welded Bonnet, Pressure Seal - Solid or Flex Wedge
Main design:
ASME B16.34, API 600, API 6D, BS 1414 BS EN 1984
Size Range:
from 2” to 24”
Pressure Class:
ANSI 150 / 300 / 600 / 900 / 1500 / 2500 LBS .
Main Materials:
BODY :WCB -WC 6-WC 9-LCB -CF 8- CF 8M-CF 3-CF 3M etc CAST IRON GG 25 OR GGG 40 FOR PRESSURES UP TO PN 16 | TRIM : N°1-F6A, N°5-Full Stellite, N°8-Stellite Seat ring, N°10-F316 etc. OTHERS MATERIALS : ON RE QUEST | STEM : F6A-F316-F51-17.4 PH | other materials on request.
Connections:
Business Solutions
Operators:
Handwheel gear, pneumatic actuators, hydraulic or electric servo-controls.
